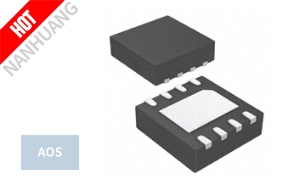

AON7242 Images
- Manufacturer: AOS (Alpha and Omega Semiconductor Limited)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: 8-DFN-EP (3.3x3.3)
- Description: MOSFET N-CH 40V 30A/50A 8DFN
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
AON7242 Specifications:
- MfrPart.: AON7242
- Mfr: Alpha & Omega Semiconductor Inc. (AOS)
- Description: MOSFET N-CH 40V 30A/50A 8DFN
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: -
- PartStatus: Obsolete
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 40 V
- Current-ContinuousDrain(Id)@25°C: 30A (Ta), 50A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 4.5V, 10V
- RdsOn(Max)@IdVgs: 3.9mOhm @ 20A, 10V
- Vgs(th)(Max)@Id: 2.3V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 32 nC @ 10 V
- Vgs(Max): ±20V
- InputCapacitance(Ciss)(Max)@Vds: 2365 pF @ 20 V
- FETFeature: -
- PowerDissipation(Max): 6.2W (Ta), 83W (Tc)
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Surface Mount
- SupplierDevicePackage: 8-DFN-EP (3.3x3.3)
- AON7242 AOS, MOSFET N-CH 40V 30A/50A 8DFN, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
